microHELIX Test Probes your fine-pitch connection



S500*5500-P2 Group

µHELIX®

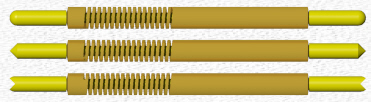

S500*5500-P2 Group
Material: Probe body (tube and coil component): 304 stainless steel
Plunger with sharp, round, flat tip: SS20AP steel
Plunger with crown tip: BeCu (Beryllium Copper)
Pin2 with sharp, round, flat tip: SS20AP stel
Pin2 with crown tip: BeCu (Beryllium Copper)
Lengths: Probe body (tube/Coil component) Length: 5500 µm (0.217 inch)
Plunger Length 1300 µm (0.051 inch)
Pin2 Length: 1300 µm (0.051 inch)
Length Overall: Length Overall (LOA) = 8,10 mm (0.319 inch)
Minimum Spacing 592 µm (0.023 inch) true center-to-center spacing
Diameter: Probe body: 508 µm (0.020 inch)
Plunger and Pin2: 356 µm (.014 inch)
Structure: 3 piece test-probe
  1. Probe body (tube/coil component): Steel tube with integral rectangular helix spring which compresses and exerts force in bogh directions along the probe axis.
  2. Plunger: Pin with fixed external length and extending internally past the coils
  3. Pin2: Pin with fixed external length
Spring Force: 30 grams (1.1 oz) force at 450 µm compression
Probe Compliance MAXIMUM 900 µm (0.035 inch) | RECOMMENDED 450 µm (0.018 inch)
Plating Probe body: 35 µinches Type II (hard) gold
Plunger: 35 µinches Type II (hard) gold
Pin2: 35 µinches Type II (hard) gold
Contact for custom plating.
Lubricant: no lubricant. Gold to gold contact between Plunger and Tube
probe resistance < 100 milliohms | (Refer to the model specific datasheet)
µHELIX® spring life > 106 cycles of operation at recommended compression
Installed Pointing Accuracy drill accuracy ±20 µm (±0.0008 inch)
INSTALLATION NOTES:
Install µHELIX® (without receptacles) in a probe-guide block with guide-holes on x,y coordinates corresponding to the DUT contact pad locations. Machine the block from a homogeneous, machinable plastic material such as UltemM®1000 (Polyeherimide), Techtron® (PPS), Ketron PEEK 1000, DELRIN® (Acetel), Torlon® 4203, Pomalux® (SD). Chemical, thermal, and electrical characteristics of these materials can be found in the Tech Note TN0019 or in from your plastic supplier's datasheets.
drill sizes probe-guide: #74; 572 µm (0.0225 inch)
plunger-guide: 1/64 inch; 397 µm (0.0156 inch)
i/o pin-guide: 1/64 inch or larger (function of fixture design)
guide hole depth probe body guide: 5500 µm
plunger-guide: Function of fixture design
i/o pin guide: Function of fixture desigh
Test-Probe Orientation: S500*5500-P2 Test-Probes can be installed with either end down
Test-Probe Removal/Replacement: Remove test-probes from the guide-block by first removing the i/o PCB or fixture 'Keeper' plate, then pushing test-probe Plunger(s) into the guide-block, and removing the test-probe(s) from the i/o end.
NOTE: Do not pull the plunger away from the guide-block nor attempt to pull the test probe out of the guide-block from the plunger end.
To clean guide-block (loaded or unloaded) submerse it in clean alcohol in an ultrasonic bath
Replace test-probes by loading them into the guide-block and reinstalling the i/o block or fixture 'keeper' plate.
* NOTE: These test-probes can be installed with either end toward the Device Under Test. The coil is offset to one end but functionally, test-probes in this group are symmetrical.
PartNum Descriptive Model Name Plunger Tip Shape Pin 2 Tip Shape * Force
600521 S500*5500/900/30@450/S1300s/S1300sSharpSharp30g
600522 S500*5500/900/30@450/S1300s/S1300rSharpRound30g
600523 S500*5500/900/30@450/S1300s/S1300fSharpFlat30g
600524 S500*5500/900/30@450/S1300s/B1300c4SharpCrown30g
600525 S500*5500/900/30@450/B1300c4/S1300rCrownRound30g
600526 S500*5500/900/30@450/B1300c4/S1300fCrownFlat30g
600527 S500*5500/900/30@450/B1300c4/B1300c4CrownCrown30g
600528 S500*5500/900/30@450/S1300r/S1300rRoundRound30g
600529 S500*3800/900/30@450/S1300r/S1300fRoundFlat30g
600530 S500*5500/900/30@450/S1300f/S1300fFlatFlat30g
