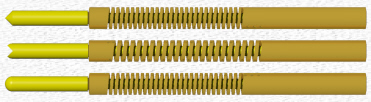

| S500*6350-P1 Group | Body (Tube/Coil) | Plunger (s,r,f) | Plunger (c4) | |||
|---|---|---|---|---|---|---|
| Tip Shapes: | sharp (s), flat (f), radiused (r) 4-point crown (c4) | |||||
| Material: | 304 stainless steel | SS20AP | BeCu | |||
| Lengths: | 6350 µm (0.250") | 1900 µm (0.075") | ||||
| Length Overall: | Length Overall (LOA) = 8,250 mm (0.325") | |||||
| Minimum Spacing | 592 µm (0.023") true center-to-center spacing | |||||
| Diameter: | 508 µm (0.020") | 356 µm (.014") | ||||
| Structure: | integrated, rectangular helix | Integral Pin & Plunger | ||||
| Spring Force: | Option-30g: 30 grams (1.1 oz) force at 750 µm (0.030") compression | |||||
| Option-100g:100 grams (3.5 oz) force at 600 µm (0.024") compression | ||||||
| Probe's Compliance | Option-30g: MAX: 1500 µm (0.059") | Typical: 750 µm (0.030") | |||||
| Option-100g: MAX: 1200 µm (0.047") | Typical: use 600 µm (0.024") | ||||||
| Plating | Tube, spring, and pins: Nickel flash +35 µinches Type II (hard) gold | |||||
| PartNum | Descriptive Model name | Tip Shape | i/o end * | Force |
|---|---|---|---|---|
| 600280 | S500*6350/1500/30@750/S1900s/S0a | Sharp | S0a | 30g |
| 600281 | S500*6350/1500/30@750/S1900r/S0a | Round | S0a | 30g |
| 600282 | S500*6350/1500/30@750/S1900f/S0a | Flat | S0a | 30g |
| 600364 | S500*6350/1500/30@750/B1900c4/S0a | 4-Point Crown | S0a | 30g |
| 600271 | S500*6350/1200/100@600/S1900s/S0a | Sharp | S0a | 100g |
| 600272 | S500*6350/1200/100@600/S1900r/S0a | Round | S0a | 100g |
| 600273 | S500*6350/1200/100@600/S1900f/S0a | Flat | S0a | 100g |
| 600361 | S500*6350/1200/100@600/B1900c4/S0a | 4-Point Crown | S0a | 100g |
| 600657 | S500*6350/1500/30@750/S1900s/S-635a | Sharp | S-635a | 30g |
| 600658 | S500*6350/1500/30@750/S1900r/S-635a | Round | S-635a | 30g |
| 600659 | S500*6350/1500/30@750/S1900f/S-635a | Flat | S-635a | 30g |
| 600660 | S500*6350/1500/30@750/B1900c4/S-635a | 4-Point Crown | S-635a | 30g |
|
|
|
|
