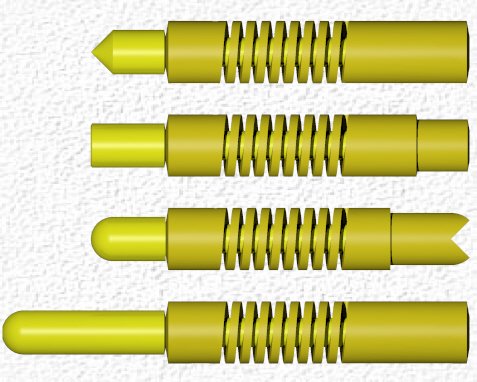

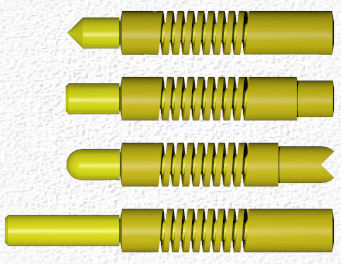

| S500*2440-P1 Group | Body (Tube/Coil) | Plunger (s,r,f) | Plunger (c4) | |||
|---|---|---|---|---|---|---|
| Tip Shapes: | sharp (s), flat (f), radiused (r) 4-point crown (c4) | |||||
| Material: | 304 stainless steel | SS20AP | BeCu | |||
| Lengths: | 2440 µm (0.096") | 610 µm (0.024") | ||||
| Length Overall: | Length Overall (LOA) = 3,050 mm (0.120") | |||||
| Minimum Spacing | 592 µm (0.023") true center-to-center spacing | |||||
| Diameter: | 508 µm (0.020") | 356 µm (.014") | ||||
| Structure: | integrated, rectangular helix | Exernal Pin & Internal Plunger | ||||
| Spring Force: | 30 grams (1.1 oz) force at 200 µm (0.008") compression | |||||
| Probe's Compliance: | MAXIMUM: 400 µm (0.016") | RECOMMENDED: 200 µm (0.008") | |||||
| Plating | Tube, spring, and pins: Nickel flash +35 µinches Type II (hard) gold | |||||
| Lubricant: | none | none | none | |||
| Test-Probe Resistance | < 30 milliohms | |||||
| Operating Temperature | -40 °C to 150°C [operation can include compression/release] down to cryogenic temperatures if compressed while in -40 to 150 °C range |
|||||
| µHELIX spring life | > 106 cycles of operation at 'typical' compression | |||||
| Installed Pointing Accuracy | drill accuracy ±20 µm (±0.0008") | |||||
| INSTALLATION NOTES: | ||||||
| probe-guide plate drill size:" | #74; 572 µm (0.0225") | |||||
| pin-guide plate drill size: | 1/64"; 397 µm (0.0156") | |||||
| S500*3800-P1 Group Models | ||||
|---|---|---|---|---|
* i/o end description:
| ||||
| PartNum | Descriptive Model name | Tip Shape | i/o end * | Force |
| 600354 | S500*2440/400/30@200/S610s/S0a | Sharp | S0a | 30g |

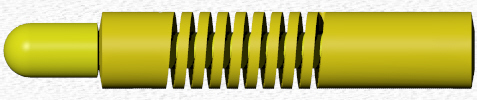

| 600419 | S500*2440/400/30@200/S610r/S0a | Round | S0a | 30g |

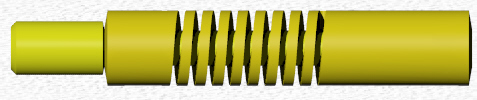

| 600420 | S500*2440/400/30@200/S610f/S0a | Flat | S0a | 30g |

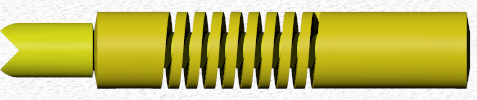

| 600407 | S500*2440/400/30@200/B610c4/S0a | 4-Point Crown | S0a | 30g |
| 600621 | S500*2440/400/30@200/S610s/S-635a | Sharp | S-635a | 30g |
| 600622 | S500*2440/400/30@200/S610r/S-635a | Round | S-635a | 30g |
| 600623 | S500*2440/400/30@200/S610f/S-635a | Flat | S-635a | 30g |
| 600624 | S500*2440/400/30@200/B610c4/S-635a | 4-Point Crown | S-635a | 30g |
| 600585 | S500*2440/400/30@200/S610s/S-635c4 | Sharp | S-635c4 | 30g |
| 600586 | S500*2440/400/30@200/S610r/S-635c4 | Round | S-635c4 | 30g |
| 600587 | S500*2440/400/30@200/S610f/S-635c4 | Flat | S-635c4 | 30g |
| 600588 | S500*2440/400/30@200/B610c4/S-635c4 | 4-Point Crown | S-635c4 | 30g |
| 600766 | S500*2440/400/30@200/S1300s/S0a | Sharp | S0a | 30g |
| 600767 | S500*2440/400/30@200/S1300r/S0a | Round | S0a | 30g |
| 600768 | S500*2440/400/30@200/S1300f/S0a | Flat | S0a | 30g |
| 600768 | S500*2440/400/30@200/B1300c4/S0a | 4-Point Crown | S0a | 30g |
|
|
|
|
|
