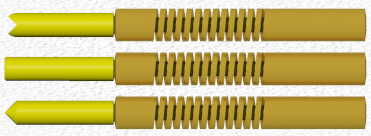

| S300*2300-P1 Group | Body (Tube/Coil) | Plunger (s,r,f) | Plunger (c4) | ||
|---|---|---|---|---|---|
| Tip Shapes: | sharp (s), flat (f), radiused (r) 4-point crown (c4) | ||||
| Material: | 304 stainless steel | SS20AP | BeCu | ||
| Lengths: | 2300 µm (0.091") | 1000 µm (0.039") | |||
| Length Overall: | Length Overall (LOA) = 3,30mm (0.130") | ||||
| Minimum Spacing | 363 µm (0.0143") true center-to-center spacing | ||||
| Diameter: | 305 µm (0.012") | 221 µm (.0087") | |||
| Structure: | integrated, rectangular helix | Exernal Pin & Internal Plunger | |||
| Force: | Option-30g: 30 grams (1.1 oz) force at 150 µm (0.006") compression | ||||
| Option-60g: 60 grams (2.2 oz) force at 125 µm (0.012") compression | |||||
| Compliance | Option-30g: MAX - 300 µm (0.012") | Typical - 150 µm (0.006") | ||||
| Option-60g: MAX - 250 µm (0.010") | Typical - 125 µm (0.005") | |||||
| Plating | Tube/spring & pin: Nickel flash +35 µinches Type II (hard) gold | ||||
| Lubricant: | none | none | none | ||
| Probe Resistance | <70 milliohms | ||||
| µHELIX spring life | > 106 cycles of operation at 'typical' compression | ||||
| Installed Pointing Accuracy | drill accuracy ±20 µm (±0.0008") | ||||
| INSTALLATION NOTES: | |||||
| probe-guide plate drill size:" | #80; 343 µm (0.0135") | ||||
| pin-guide plate drill size: | #88; 240 µm (0.0094") | ||||
|
|
|
|
|
