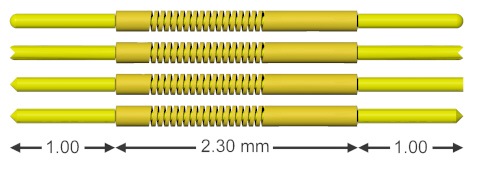

| S200*2300-P2 Group | Body (Tube/Coil) | Pin1 (s,r,f) | Pin1 (c4) | Pin2 (s,r,f) | Pin2 (c4) | |
|---|---|---|---|---|---|---|
| Tip shapes: | sharp (s), flat (f), radiused (r) 4-point crown (c4) | |||||
| Material: | 304 stainless steel | SS20AP | BeCu | SS20AP | BeCu | |
| Lengths: | 2300 µm (0.091") | 1000 µm (0.039") | 1000 µm (0.039") | |||
| Length Overall: | Length Overall (LOA) = 4,30 mm (0.169") | |||||
| Minimum Spacing | 254 µm (0.010") true center-to-center spacing | |||||
| Diameter: | 204 µm (0.008") | 140 µm (.0055") | 140 µm (.0055") | |||
| Structure: | integrated, rectangular helix | external/internal pin | external pin | |||
| Spring Force: | 30 grams (1.1 oz) force at 150 µm (0.006") compression | |||||
| Probe's Compliance | MAX: 300 µm (0.012") | Typical: 150 µm (0.006") | |||||
| Plating | Tube, spring, and pins: Nickel flash +35 µinches Type II (hard) gold | |||||
| Lubricant: | none | none | none | none | none | |
| probe resistance | <130 milliohms | |||||
| µHELIX spring life | > 106 cycles of operation at 'typical' compression | |||||
| Installed Pointing Accuracy | drill accuracy ±20 µm (±0.0008") | |||||
| INSTALLATION NOTES: | ||||||
| probe-guide plate drill size:" | #88; 241 µm (0.0095") | |||||
| pin-guide plate drill size: | #96; 160 µm (0.0055") | |||||
|
 |
|
|
|
